neoStat – Touch Smart Thermostat

Elegance Meets Technology

The neoStat – Touch combines sleek aesthetics with advanced functionality. It features a glass panel touchscreen and an always on dimmable LED display. With its vibrant, intuitive interface, it enhances user interaction. As part of the NeoHub ecosystem, it offers effortless temperature control. You can use voice commands with Amazon Alexa, Google Assistant, or Apple HomeKit. Additionally, the neoApp allows for easy management and access to data.

Designed for modern homes, the neoStat – Touch is 230v powered, making it ideal for replacing existing mains-powered thermostats. For electric floor heating systems, the neoStat Touch-e models offer precise control. They can handle up to 16A, making them perfect for electric heating systems.

Available in two colours, the Carbon model stands out with its “All Black” design and negative LCD touchscreen. This option is ideal for those seeking a bold, contemporary look. The neoStat – Touch series seamlessly blends style with smart technology, making it perfect for energy-conscious homes that value both performance and aesthetics.

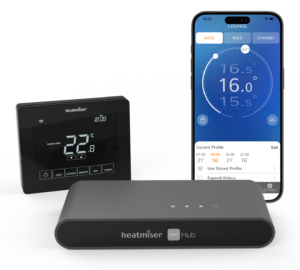

Now has complete app control via neoHub

Key Features

Standalone or Smart thermostat
A stylish mains-powered wall-mounted non Programmable, 5/2 Day or 7 Day Programming , or full Smart function control and data access through neoHub and the neoApp.
Wireless networking
neoStat Touch maintains an always-on link with other neo thermostats in the home. By networking each thermostat or zone together reliable control can be achieved in awkward conditions.
Remote sensors
Connects to both a remote air and remote floor sensor to monitor temperatures in the surrounding area.
Electric Floor Heating
The neoStat Touch-e / Touch-e Carbon is our programmable electric floor heating models, capable of switching up to 16A. A 3M remote floor sensor is included.

Reliable and Efficient Mesh Networking
Advanced mesh networking ensures stable communication across all connected devices, enhancing network range and stability while automatically routing data between neoStats.
Energy-saving optimum start
Calculates the heat-up time required for a warm home upon return. Those times are optimised throughout the year to save energy.
Hold temperature setting
The Temperature Hold feature allows for a desired set temperature to be set for a specific duration. After this time has expired, the thermostat will return to its normal program.
System compatibility
Compatible with Solar, Heat Pump and most Boiler Technologies.

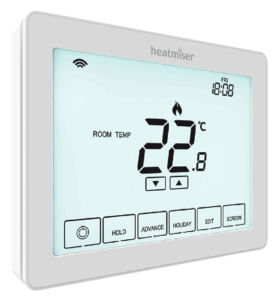

neoStat Touch White

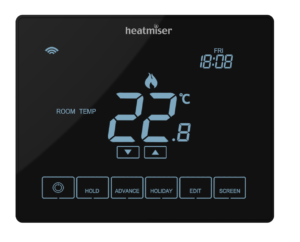

neoStat Touch Carbon

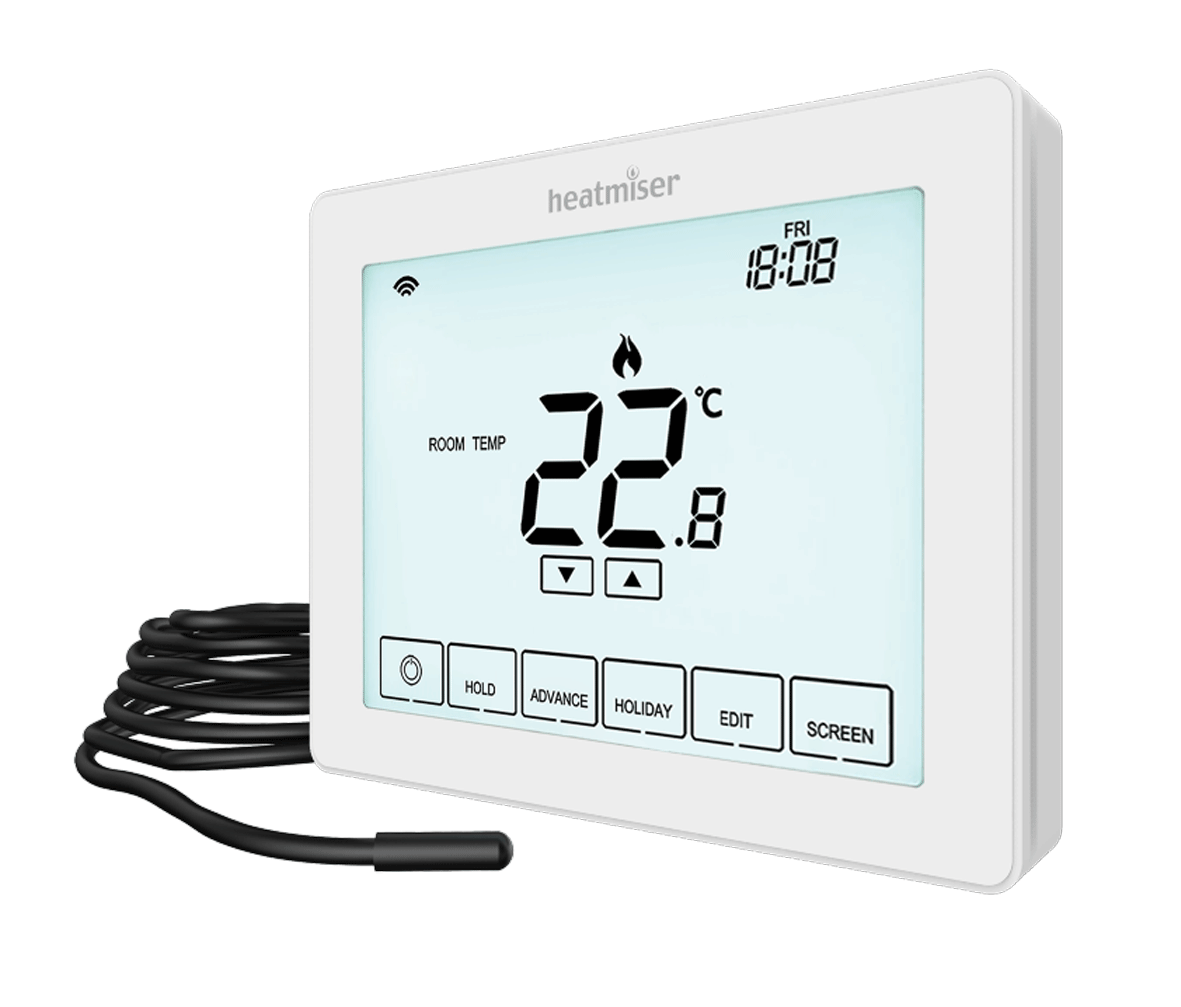

neoStat Touch-e White

Technical Information

	neoStat Touch	neoStat Touch-e
Dimensions	Control Panel H 86mm W 112mm D 12mm (PSU +25mm)	Control Panel H 86mm W 112mm D 12mm (PSU +25mm)
Weight	197 g	197 g
Boxed Dimensions	H 70 mm W 112 mm D 110 mm	H 70 mm W 112 mm D 110 mm
Boxed Weight	287 g	314 g
What comes in the box	Thermostat, Manual, Domestic screws x2	Thermostat, 3m floor probe, Manual, Domestic screws x2
Mounting type	Flush Mount	Flush Mount
Colours	White & Carbon (Black)	White & Carbon (Black)

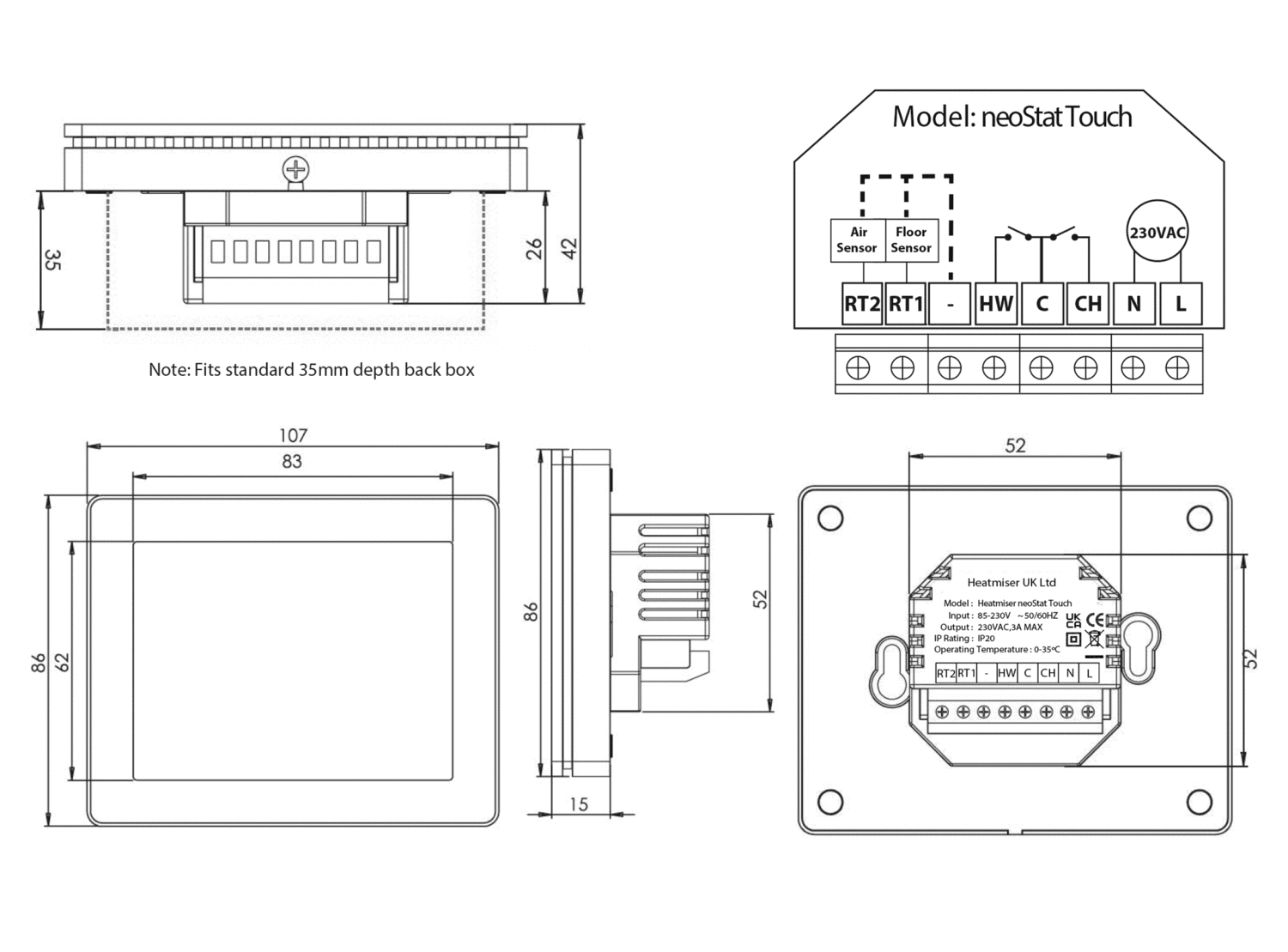

Black and white schematic of neoStat Touch showing dimms and wiring points.

Technical Detail & Downloads

Full function detail

	neoStat Touch	neoStat Touch-e Carbon and White
Mounting type	Flush Mount	Flush Mount
Lock facility	Yes	Yes
neoHub Compatibility	Yes	Yes
neoHub Mini Compatibility	No	No
Thermostat Mode	Yes	Yes
Timer Mode	No	No
Heating & Timer Mode	No	No
Temperature Range	05-35 °C, 41-95 °F	05-35 °C, 41-95 °F
Back Lit LCD Screen	Yes	Yes
Non-Programmable Mode	Yes	Yes
5/2 Day Programming Mode	Yes	Yes
7 Day Programming Mode	Yes	Yes
24 Hour Programming Mode	Yes	Yes
Number of Heating Levels	4 or 6 when connected to a neoHub	4 or 6 when connected to a neoHub
Optimum Start	Yes	Yes
Number of HW Times	Yes in timeclock mode	Yes in timeclock mode
Holiday Function	Yes	Yes
Temperature Hold Function	Yes	Yes
Temperature Override	Yes	Yes
Temperature Override Limit	Yes	Yes
Frost Protection	Yes	Yes
App Control	Yes	Yes
°C / °F Option	Yes	Yes
Remote Air Sensor Connection	Yes	Yes
Built-in Air Sensor	Yes	Yes
Floor Sensing Mode	Yes	Yes
Floor Sensor Included	Yes	Yes
Wireless Failsafe Function	No	No
Max Switching Current	16 amp	16 amp
Accuracy	+/- 1 °C	+/- 1 °C
Adjustable Switching Differential	0.5 – 3°C	0.5 – 3°C
Supply	230 Volt AC	230 Volt AC
Battery lifetime	n/a	n/a
Output	230 Volt AC	230 Volt AC
Installed Dimensions	85x85x12mm (L,H,D)	85x85x12mm (L,H,D)
Wireless Switching to UH8-RF/RF Switch	Yes	Yes
RF Frequency	2.4Ghz	2.4Ghz
RF Range	Up to 40M	Up to 40M
