The TouchScreen Thermostat Series offers models suitable for conventional heating systems, renewable energy and electric floor heating.

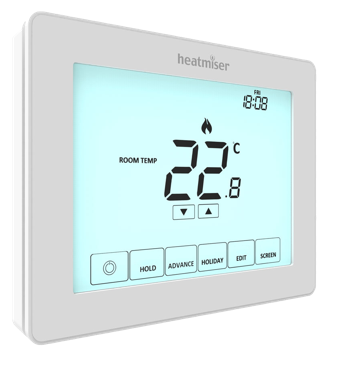

The Heatmiser Touch v2 is our 230v powered TouchScreen Thermostat and is the ideal upgrade route for those with an existing mains powered thermostat.
The Touch v2 is compatible with our wireless air sensor and window switch, offering a more flexible energy efficient control solution. It is also offers Modbus connectivity, allowing the Touch v2 to be used in a BMS.

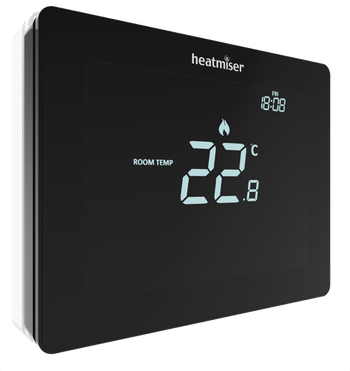

The Heatmiser Touch Carbon is our 230v powered “All Black” TouchScreen Thermostat featuring a negative Touchscreen LCD and is the ideal choice for those wanting an ultra modern thermostat.
The Touch Carbon is compatible with our wireless air sensor and window switch, offering a more flexible energy efficient control solution. It is also offers Modbus connectivity, allowing the Touch Carbon to be used in a BMS.

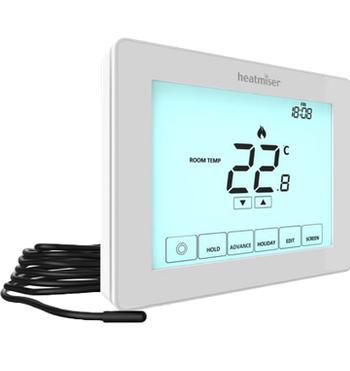

The Heatmiser Touch-e v2 is our touchscreen programmable electric floor heating model, capable of switching up to 16A and the touchscreen interface makes interacting with the heating system easy.
The Touch-e v2 is compatible with our wireless air sensor and window switch, offering a more flexible energy efficient control solution. It is also offers Modbus connectivity, allowing the Touch v2 to be used in a BMS.

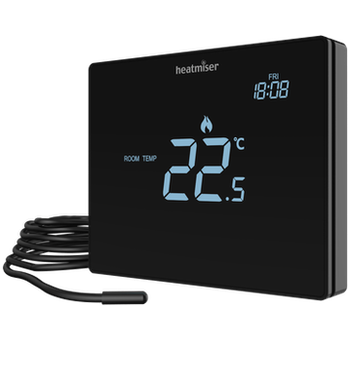

The Heatmiser Touch-e Carbon is our touchscreen programmable electric floor heating model, capable of switching up to 16A. The Touch-e Carbon features a negative Touchscreen LCD and is the ideal choice for those wanting an ultra modern thermostat.
The Touch-e Carbon is compatible with our wireless air sensor and window switch, offering a more flexible energy efficient control solution. It is also offers Modbus connectivity, allowing the Touch Carbon to be used in a BMS.
| Feature | Touch v2 | Touch Carbon | Touch-E v2 | Touch-e Carbon |
|---|---|---|---|---|
| Temperature Range | 05-35C | 05-35C | 05-35C | 05-35C |
| Flexible Programming | Yes | Yes | Yes | Yes |
| No. Heating Levels | 4 | 4 | 4 | 4 |
| Optimum Start | Yes | Yes | Yes | Yes |
| Holiday Function | Yes | Yes | Yes | Yes |
| Key Lock Function | Yes | Yes | Yes | Yes |
| Temperature Hold | Yes | Yes | Yes | Yes |
| Modbus Connection | Yes | Yes | Yes | Yes |
| Remote Air Sensor Function | Yes | Yes | Yes | Yes |
| Floor Sensor Mode | Yes | Yes | Yes | Yes |
| Floor Sensor Inc. | No | No | Yes | Yes |
| Max Current | 3A | 3A | 16A | 16A |
| Supply | 230v | 230v | 230v | 230v |
| Dimensions (L,H,D) | 100x110x16.5mm | 100x110x16.5mm | 100x110x16.5mm | 100x110x16.5mm |
| Wireless Sensor Function | Yes | Yes | Yes | Yes |
