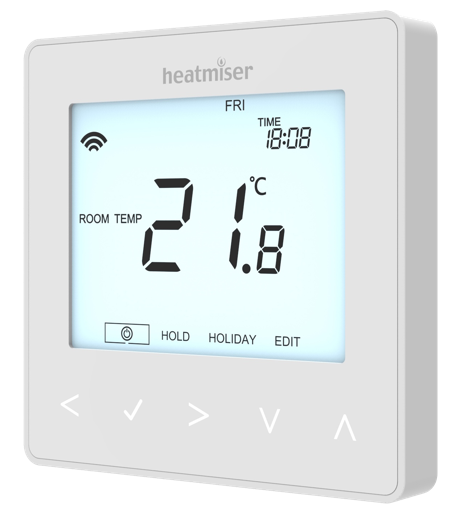

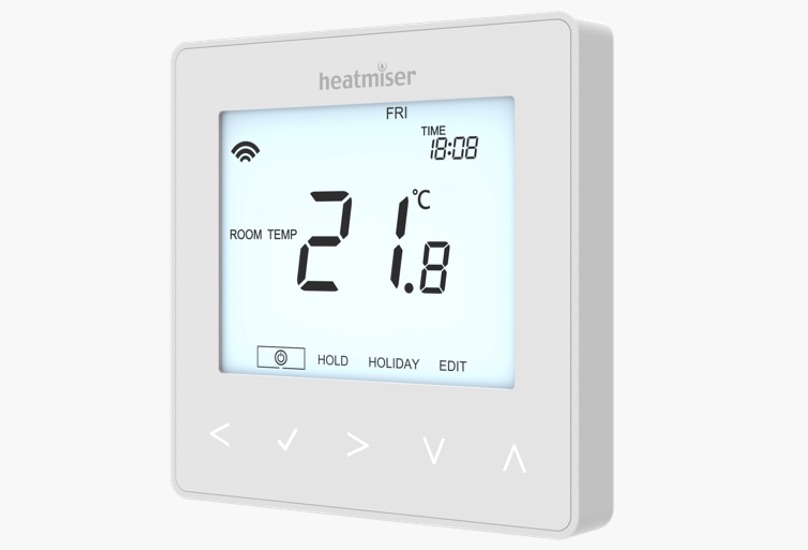

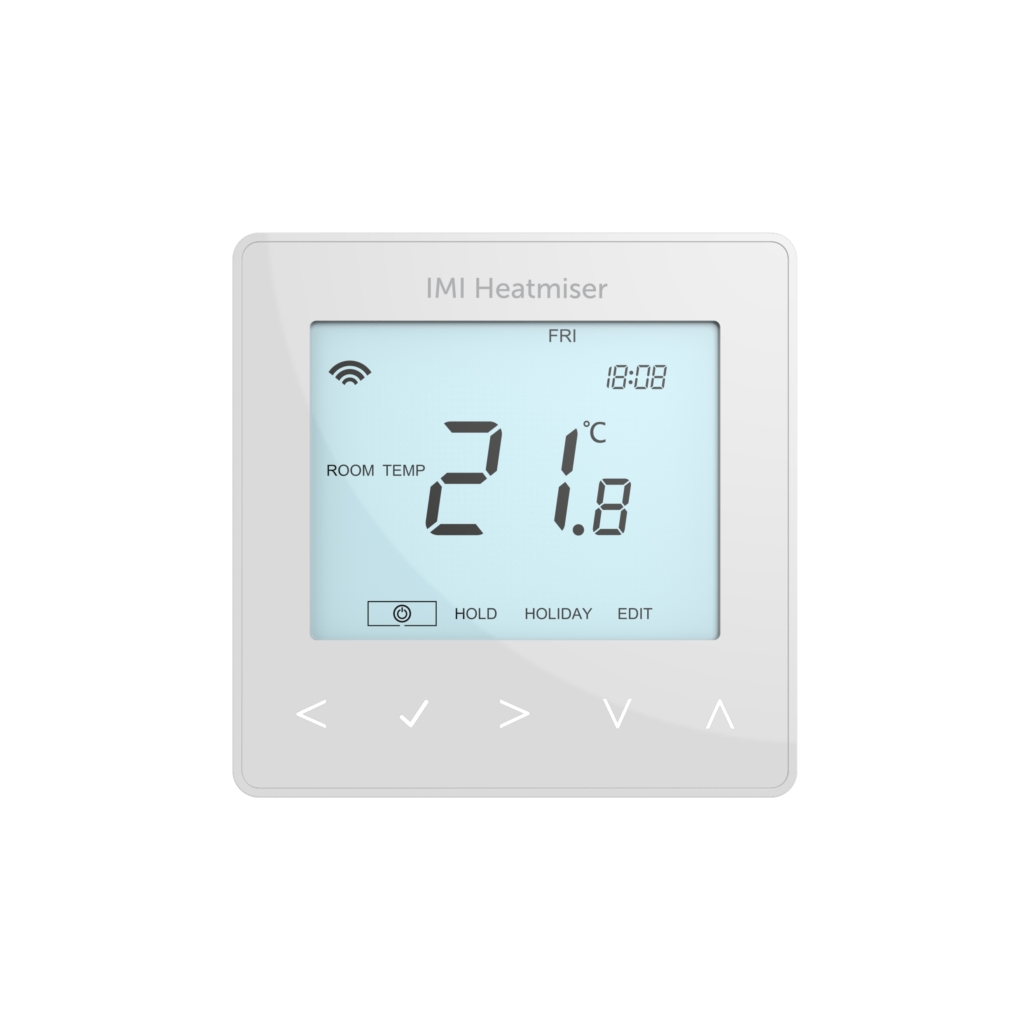

The neoStat’s have been designed to be slim & stylish, and feature proximity based illuminated soft touch keys. neoStat’s are available in Glacier White, Sapphire Black, Platinum Silver and are just a little bigger than a standard light switch, so you will notice what it does rather than where it is.
The neoStat Smart Thermostats can be controlled from anywhere when paired to the plug and play neoHub Gen 2.
The Heatmiser neoStat v2 is 230v powered Smart Thermostat and is the ideal upgrade route for those with an existing mains powered thermostat. The neoStat v2 can operate in Timer or Heating Mode and can be used with remote sensors.
The Heatmiser neoStat-e v2 is our electric floor heating Smart Thermostat, capable of switching up to 16A. A 3M remote floor sensor is provided and the neoStat-e v2 can be used alongside all other neoStat models on the same system.
The Heatmiser neoStat-hw v2 is a time clock with changeover contacts.
It is designed for those with a motorised valve that requires power to open and power to close.
The neoStat 12v v2 is our powered Smart Thermostat and is the ideal upgrade route for those wanting app control and that have existing low voltage cabling installed. neoStat 12v v2 are compatible with our 12v Wiring Centre UH8-N and previous generation UH1.
The neoAir v3 Smart Thermostat is ideal for those looking for a totally wire free App controllable solution of your heating & hot water.
The neoAir v3 Smart Thermostat is compatible with the UH8-RF v2/RF Switch v2 as well as the all new neoHub Mini WiFi Hub.
| Features | neoStat v2 | neoStat-e v2 | neoStat-hw v2 | neoStat-12v v2 | neoAir v2 / v2-M / v3 |
|---|---|---|---|---|---|
| Works with neoHub Gen 2 | Yes | Yes | Yes | Yes | neoAir v2 – Yes neoAir v2-M -Yes neoAir v3 – Yes |
| Works with neoHub Mini | No | No | No | No | neoAir v2 – No neoAir v2-M – Yes neoAir v3 – Yes |
| Thermostat Mode | Yes | Yes | Yes | Yes | Yes |
| Timer Mode | Yes | Yes | Yes | Yes | Yes |
| Heating & Timer Mode | No | No | No | No | Yes |
| Temperature Range | 05-35C | 05-35C | 05-35C (when in Thermostat Mode) | 05-35C | 05-35C |
| Back Lit Display | Yes | Yes | Yes | Yes | Yes |
| Non Programmable | Yes | Yes | Yes | Yes | Yes |
| 5/2 Day Programming | Yes | Yes | Yes | Yes | Yes |
| 7 Day Programming | Yes | Yes | Yes | Yes | Yes |
| 24 Hour Programming | Yes | Yes | Yes | Yes | Yes |
| No. Heating Levels | 4 | 4 | 4 (Only available when in Thermostat Mode) | 4 | 4 |
| Self Learning Preheat | Yes | Yes | Yes | Yes | Yes |
| No. HW Times | NA | NA | 4 (Only available when in Timer Mode) | NA | 4 |
| Holiday Function | Yes | Yes | Yes | Yes | Yes |
| Temperature Hold | Yes | Yes | Yes (when in Thermostat Mode) | Yes | Yes |
| App Control | Yes | Yes | Yes | Yes | Yes |
| Air Sensor Connection | Yes | Yes | No | Yes | Yes |
| Floor Sensing Mode | Yes | Yes | No | Yes | Yes |
| Floor Sensor Included | No | Yes | No | No | No |
| Max Current | 3A | 16A | 3A | 3A | 3A |
| Changeover Contacts | No | No | Yes | No | No |
| Wireless Switching to UH8-RF v2 RF Switch v2 | No | No | No | No | Yes |
| Supply | 230v AC | 230v AC | 230v AC | 12v DC | 4 x AAA Batteries |
| Dimensions (L,H,D) | 85x85x15mm | 85x85x15mm | 85x85x15mm | 85x85x15mm | 86x86x26mm |
