Wireless Thermostat Receivers & Repeaters
The Heatmiser Boost v2 and RF Switch v2 are surface mounting for easy installation.

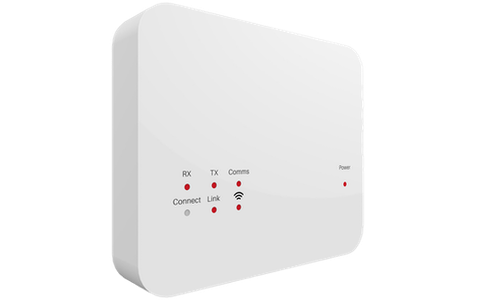

Heatmiser Boost v2
The Heatmiser Boost v2 is our surface mount repeater for the RF and Neo System. The Heatmiser Boost v2 is designed to extend the communication between the RF Thermostats and Wiring Centre and the neoStat’s/neoAir v3 & neoHub Gen 2.
| Features | Boost v2 |
|---|---|
| Mounting Type | Surface Mounting |
| Compatibility | Slimline RF v3, UH8-RF v2, Neo System |
| Supply | 230v AC |
| Dimensions | 108x90x24mm |
Heatmiser RF Switch v2
The Heatmiser RF Switch v2 is our wireless thermostat receiver. It can cater for a 2 heating zones and the hot water cylinder. Output indications are provided and the unit is surface mount for easy installation.
In addition, the RF Switch v2 can act as a wireless boiler enable link from the UH8-RF v2 8 Zone Wiring Wiring Centre.
| Feature | RF Switch v2 |
|---|---|
| Compatibility | Slimline-RF v3 neoAir v3 UH8-RF v2 |
| No. Of Heating Zones | 2 |
| No. of Hot Water Zones | 1 |
| Mounting Type | Surface |
| Relay Load Max | 3A Resisitive |
| Total Load Max | 9A Resistive |
| Supply | 230v AC |
| Dimensions (L,H,D) | 108x90x24mm |
